Starting with v3.0, the ESP8266 NONOS SDK requires that partitions be registered in function void user_pre_init(void)
, like this:
#define SPI_FLASH_SIZE_MAP 2
void ICACHE_FLASH_ATTR user_pre_init(void)
{
bool rc;
static const partition_item_t part_table[] =
{
{SYSTEM_PARTITION_RF_CAL, 0xfb000, 0x1000},
{SYSTEM_PARTITION_PHY_DATA, 0xfc000, 0x1000},
{SYSTEM_PARTITION_SYSTEM_PARAMETER, 0xfd000, 0x3000},
};
rc = system_partition_table_regist(part_table,
sizeof(part_table)/sizeof(part_table[0]),
SPI_FLASH_SIZE_MAP);
if (rc)
goto done;
os_printf("Error while registering partitions\r\n");
while (1) ;
done:
}
The code above initialises and registers a table of partitions, each having a type, a start address, and a size. Despite the documentation in ESP8266 Non-OS SDK API Reference and README, partitions can still be difficult to understand. This post aims to provide some clarity.
As an aside—
Some images are mandatory for ESP8266 to work, as
described in ESP8266 SDK Getting Started Guide (see screenshot below).
They are obtained in bin
of the SDK code repository and can be written to the flash as per the instructions. The addresses here are for the ESP-01 but can be found in the documentation for other models.
blank.bin
at address 0xFB000esp_init_data_default.bin
at 0xFC000blank.bin
at 0xFD000
The bootloader and user program are written normally at 0x0000 and 0x1000 respectively. It is not necessary to rewrite the mandatory images every time, as long as they have not been overwritten. If in doubt, erase all the flash and write them again.
Back to the partitions—

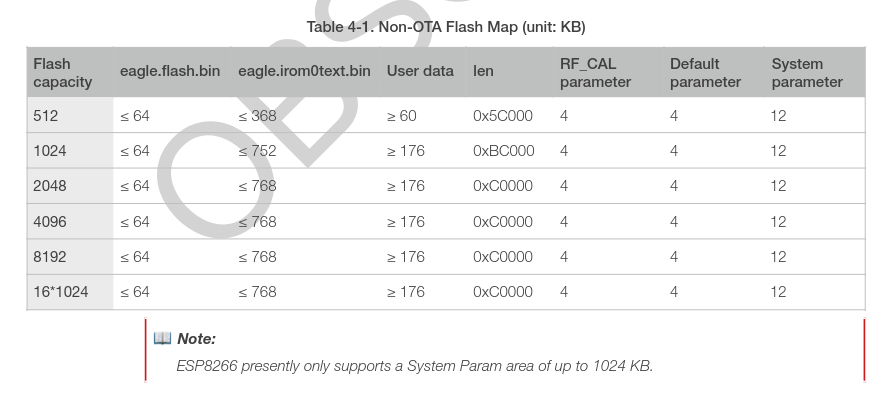

The choice of partitions’ addresses is driven by the flash size on the target ESP8266 controller. Referring to the flash map given below and the size of each partition, it is easy to calculate the start addresses by starting with the last partition and working backwards.
Consider the 1 MiB flash of the ESP-01, with a size of 0x100000 bytes (1024 KiB).
The SYSTEM_PARTITION_SYSTEM_PARAMETER partition at the last position must be 12 KiB large. Therefore, its start address must be at 0x100000 – 0x3000 (0x3000 being hex for 12288), giving a value of 0xFD000.
The second to last partition, SYSTEM_PARTITION_PHY_DATA, must be 4 KiB large. Using the same math, 0xFD000 – 0x1000 (0x1000 being hex for 4096) the start address is determined to be 0xFC000
The first partition, SYSTEM_PARTITION_RF_CAL, with a size of 4 KiB, is then found to start at 0xFC000 – 0x1000, which is 0xFB000.
These calculated start addresses correspond to the values in the code above—and the addresses where the mandatory images are written.
The last argument passed to system_partition_table_regist
is the “map”. In the example above, the macro SPI_FLASH_SIZE_MAP
is defined with a value of 2
. Where does it come from?
The enum flash_size_map
in include/user_interface.h
lists all possible values; in this case, the one corresponding to the 1 MiB flash of an ESP-01 (or 8M bits map) is 2
.
